‹ Home › Inventory › FLTRXSTSE 2024 CVO™ Road Glide® ST

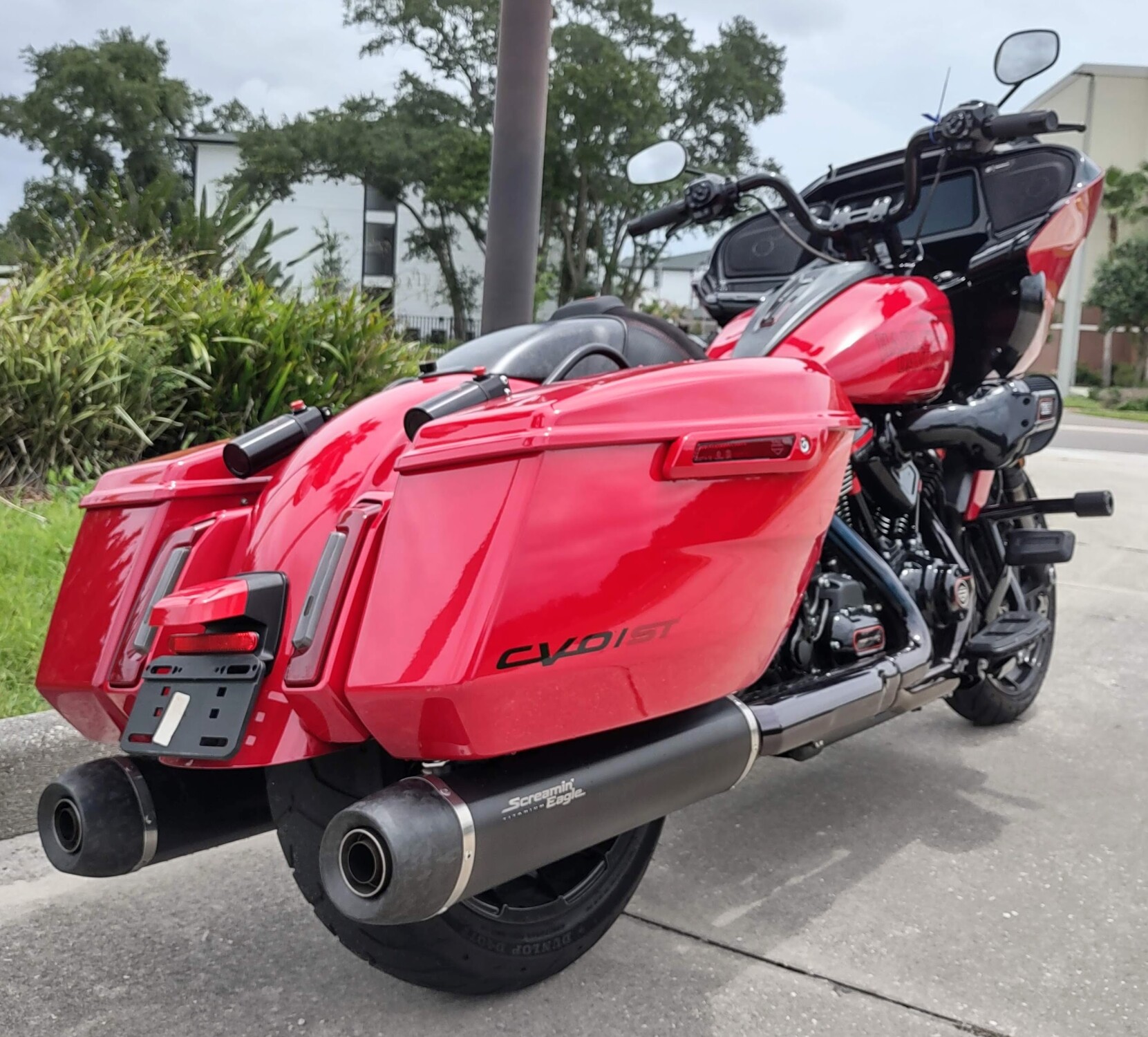

The CVO Road Glide ST is the most responsive and sophisticated performance bagger on the road.

*Advertised prices are subject to change without notice based on market conditions. Advertised price does not include tax, license, dealer fees, or other applicable charges. All advertised pricing is honored in-store only. Trade-in values are subject to appraisal and may impact final pricing. Advertised or discounted pricing is available only with approved credit and approved financing through Eaglemark Savings Bank, with a minimum 30% down payment. Space Coast Harley-Davidson reserves the right to adjust prices as market value changes.

Specifications

Dimensions

add remove
- Length:

  94.9 in
- Seat height, unladen:

  28.3 in
- Rake (steering head):

  26
- Trail:

  6.7 in
- Wheelbase:

  64.0 in
- Tires, front specifications:

  130/60B19 M/C 61H
- Tires, rear specifications:

  180/55B18 M/C 80H
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  800 lbs
- Weight, in running order:

  838 lb
- Luggage capacity – volume:

  2.42 cu ft (0.069 m³)
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 121 High Output
- Bore:

  4.1 in
- Stroke:

  4.6 in
- Displacement:

  120.64 in³
- Compression ratio:

  11.4:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-1-2 dual exhaust, Titanium mufflers with carbon fiber end caps
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  145.3 ft-lb
- Engine torque (RPM):

  4,000
- Lean angle, right (deg.):

  33
- Lean angle, left (deg.):

  32
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  44 mpg (5.3 l/100 km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  10.233
- Gear ratios (overall) 2nd:

  7.093
- Gear ratios (overall) 3rd:

  5.268
- Gear ratios (overall) 4th:

  4.266
- Gear ratios (overall) 5th:

  3.635
- Gear Ratios (overall) 6th:

  3.067
Chassis

add remove
- Front fork:

  47 mm Inverted 1x1 Front Forks with adjustable preload, compression damping and rebound damping
- Rear shocks:

  Emulsion suspension with adjustable preload, compression damping and rebound damping
- Wheels, front type:

  Black, 7-spoke Cast Aluminum
- Wheels, rear type:

  Black, 7-spoke Cast Aluminum
- Brakes, type:

  Wave Style, dual floating rotors (front), fixed rotor (rear)
- Brakes, caliper type:

  32 mm, 4-piston fixed dual radially mounted front, and single axially mounted rear
Electric

add remove
- Lights (as per country regulation), indicator:

  LED headlamp, tail/stop, front signal lights and rear turn signals
- Gauges:

  Digital gauges integrated within the display
Infotainment

add remove
- Screen size:

  12.3 in
- Infotainment system:

  Skyline™ OS
- Type:

  Full Color TFT
- Watts per channel:

  125
- Speakers:

  2
- Speaker size:

  Two 6.5in fairing speakers
- AM:

  Standard
- FM:

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Languages:

  Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice recognition: phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Standard (rider and passenger headset sold separately), VOX is available for HD headsets
- Vehicle information screen:

  Standard
- USB:

  USB-C/MTP/iPod/iPhone, any device with proper adapters to the electric power outlet in the inner fairing storage.
- Bluetooth:

  Phone/Media Player, Headset
