New 2025 Harley-Davidson® Breakout™ FOR SALE NEAR Palm Bay, FL

This New Vivid Black 2025 Harley-Davidson® Breakout™ is for sale at Space Coast Harley-Davidson located in Palm Bay, FL. Contact Space Coast Harley-Davidson of Palm Bay, FL today to schedule a test-ride. If this isn't the exact Harley-Davidson® you're looking for don't hesitate to go back and revise your search. We're sure to have the perfect new motorcycle for you on our showroom in Palm Bay where we host one of the largest selections of new and used motorcycles. Visit Space Coast Harley-Davidson of Palm Bay, your FL Harley-Davidson® dealership. FL’s premier new & used motorcycle dealer, we'll help you ride home on a new Harley-Davidson® today!

Space Coast Harley-Davidson

Easy Financing. Call Today!

Map Directions: 1440 Sportsman Lane

Click To Call: 321-358-0362

With a wide rear tire, bobtail rear fender, long rake, straight handlebars, and a 21-inch front wheel, the Breakout marries classic chopper style with the performance of a Milwaukee-Eight^® 117 Custom powertrain.

Specifications

Dimensions

add remove
- Length:

  93.5 in
- Seat height, unladen:

  26.2 in
- Ground clearance:

  4.5 in
- Rake (steering head):

  34
- Trail:

  5.7 in
- Wheelbase:

  66.7 in
- Tires, front specifications:

  130/60B21,63H,BW
- Tires, rear specifications:

  240/40R18,79V,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  655 lbs
- Weight, in running order:

  681 lb
- Tire, type:

  Michelin® Scorcher 11, front and rear
Engine

add remove

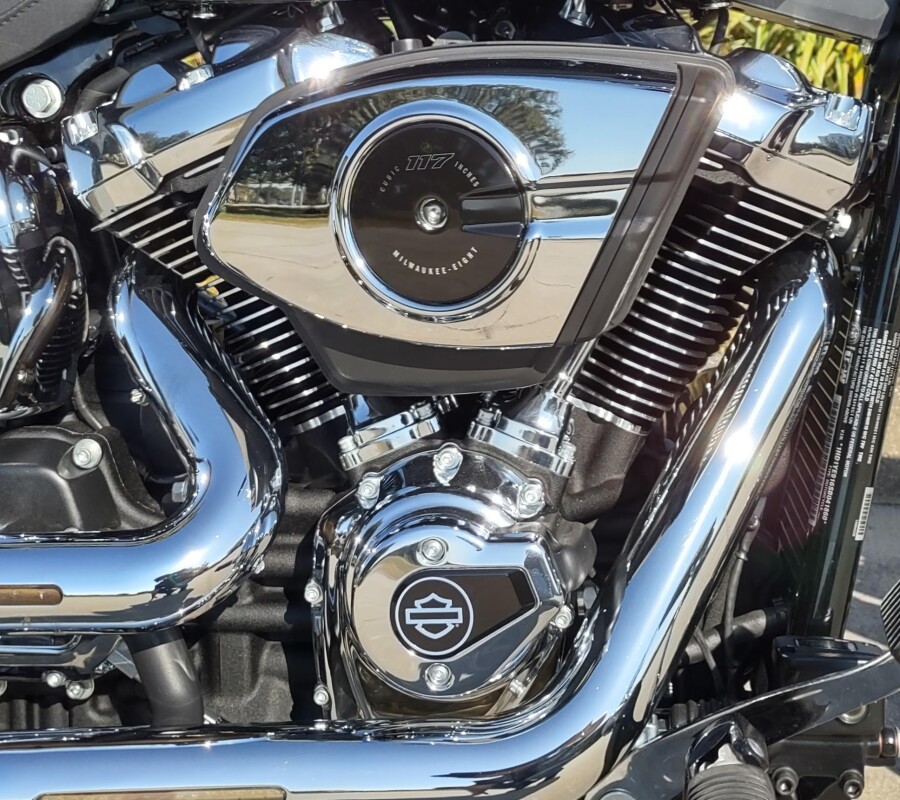

- Engine:

  Milwaukee-Eight® 117 Custom
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  126.1 ft-lb
- Engine torque (RPM):

  3000
- Horsepower:

  104 HP / 77 kW @ 4800 rpm
- Lean angle, right (deg.):

  26.8
- Lean angle, left (deg.):

  26.8
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  49 mpg (4.8 l/100 km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Gloss black, 26-spoke cast aluminum
- Wheels, rear type:

  Gloss black, 26-spoke cast aluminum
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
