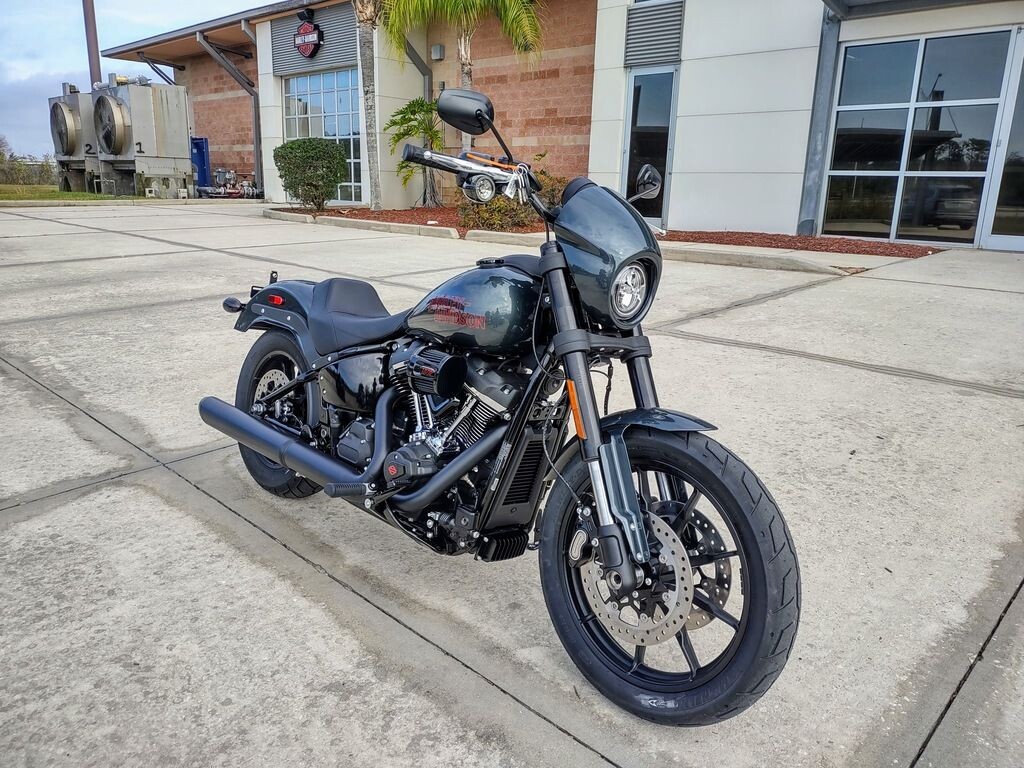

‹ Home › Inventory › FXLRS 2025 Low Rider™ S

Discover the latest 2025 Harley-Davidson lineup arriving daily at Space Coast Harley-Davidson. Enjoy a premium selection of models and a complete 5-star buying experience that sets us apart in the motorcycle industry. Proudly serving Palm Bay, Orlando and the Florida Coast. 2025 Harley-Davidson® Low Rider® S Features may include: DESIGN Trim + Graphics Bold red accents on the intake, timing cover, and derby cover stand out against the striking contrast of matte black and gloss black finishes. Solo Seat Steep-backed solo seat provides support for hard launches and rapid acceleration. Premium Paint Five premium paint options to match your personal style, including Factory Custom color Mystic Shift, which changes from a dark gunmetal to purple to blue, and finally to an almost orange in full sunlight. LED Lighting Light up the road with a bright 5.75-inch LED headlight, and let LED turn indicators and taillight give clear signals of where you’re going.PERFORMANCE Rear Suspension A tall monoshock kicks up the rear end, giving you extra cornering clearance when you're pushing the limits. Milwaukee-Eight® 117 H.O. Engine High-output Milwaukee-Eight® 117 engine is tuned to deliver peak power in the upper rev range and entice riders who want to push their bike to the limit. Two-Into-One Exhaust Lightweight, blacked-out exhaust system is sleek and compact with high-flowing performance. Heavy Breather Intake Heavy breather intake is angled into the wind for high-flowing performance and aggressive style.INNOVATION Four-Inch Analog Display Riser-mounted analog gauge is easy to read, and a digital display shows key features like Ride Modes and Safety Enhancements. Hand Controls Updated hand controls accommodate Rider Safety Enhancements like Cruise Control and Traction Control, while an adjustable brake lever lets riders tune ergonomics to their preferences. USB-C Charging USB-C charging keeps your devices powered, so you can ride farther while using navigation, listening to music, and staying connected through your Bluetooth® headset.

Specifications

Dimensions

add remove
- Length:

  92.9 in
- Seat height, unladen:

  28.1 in
- Rake (steering head):

  28
- Trail:

  5.7 in
- Wheelbase:

  63.6 in
- Tires, front specifications:

  110/90B19,62H,BW
- Tires, rear specifications:

  180/70B16,77H,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  644 lbs
- Weight, in running order:

  670 lb
- Tire, type:

  Michelin® Scorcher 31, front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 High-Output
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  128.3 ft-lb
- Engine torque (RPM):

  4000
- Horsepower:

  114 HP / 85 kW @ 5000 rpm
- Lean angle, right (deg.):

  31.3
- Lean angle, left (deg.):

  31.3
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  47 mpg (5 l/100km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Dark bronze, Radiate cast aluminum wheel
- Wheels, rear type:

  Dark bronze, Radiate cast aluminum wheel
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
