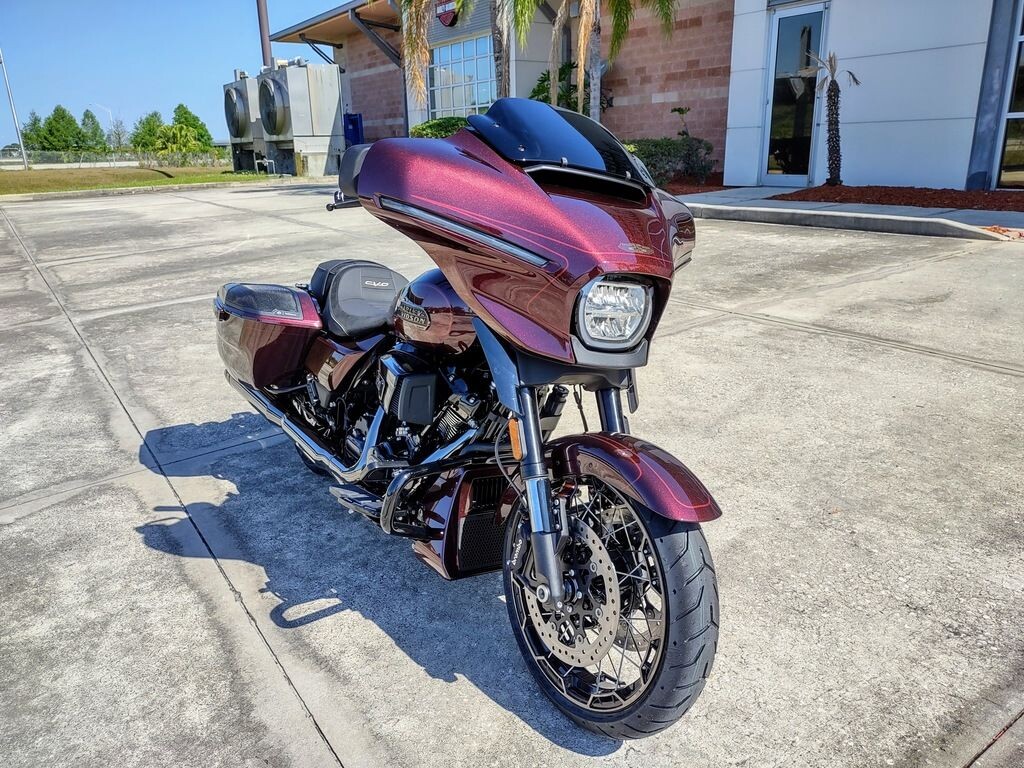

‹ Home › Inventory › FLHXSE 2024 CVO™ Street Glide®

Discover the latest 2024 Harley-Davidson lineup arriving daily at Space Coast Harley-Davidson. Enjoy a premium selection of models and a complete 5-star buying experience that sets us apart in the motorcycle industry. Proudly serving Palm Bay, Orlando and Florida Coast. 2024 Harley-Davidson® CVO™ Street Glide® Features may include: BATWING FAIRING The iconic batwing fairing takes on new life with a sculpted silhouette, fully integrated LED lighting, and a split-stream vent opening. Meticulously designed using computational fluid dynamics (CFD), the CVO Street Glide design optimizes aero performance and rider comfort with a striking new take on the original. SIGNATURE LED LIGHTING Seamlessly integrated, the full LED lighting package optimizes visibility, integrates turn signals, and accentuates the lines of the batwing fairing, creating a distinctive look that’s instantly recognizable, day or night. WHEELS The CVO Street Glide is fitted with 19-inch front and 18-inch rear, Combo Cast Laced wheels equipped with Tire Pressure Monitoring System (TPMS). FLOW STATE Sculpted using wind tunnel data analysis, every surface of the CVO Street Glide has been reimagined and refined, creating a seamless visual flow from the tip of the front fender to the tail of the saddlebags. SADDLEBAGS A final extension of the aggressive lines and athletic build of the fairing and fuel tank, the saddlebags increase overall luggage capacity and complete the aggressive stance of the CVO Street Glide. 25TH ANNIVERSARY PAINT & FINISHES Available in color-shifting Copperhead with Warm-Shift pinstripes or Legendary Orange with Raven Metallic and Atlas Silver brushed sections. Each option is finished with color-matched parts and accessories, CVO graphics, and an engraved CVO 25th Anniversary console insert. MILWAUKEE-EIGHT® VVT 121 V-TWIN ENGINE The highest displacement powertrain ever to be factory installed on a Harley-Davidson Touring motorcycle, the Milwaukee-Eight VVT 121 engine features liquid-cooled cylinder heads, variable valve timing (VVT), and a new intake tract. The increased displacement produces more power and torque than the Milwaukee-Eight 117 engine, while VVT broadens the overall powerband and improves fuel economy. BRAKES Dual front disc brakes with radially mounted four-piston Brembo™ calipers in the front and a single four-piston Brembo caliper in the rear enhance feel and overall braking performance.

Specifications

Dimensions

add remove
- Length:

  94.9 in
- Overall width:

  38.4 in
- Overall height:

  53.1 in
- Seat height, unladen:

  28.0 in
- Ground clearance:

  5.5 in
- Rake (steering head):

  26
- Trail:

  6.7 in
- Wheelbase:

  64.0 in
- Tires, front specifications:

  130/60B19 M/C 61H
- Tires, rear specifications:

  180/55B18 M/C 80H
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  800 lbs
- Luggage capacity – volume:

  2.2 cu ft (0.062 m3)
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
- Fork angle:

  30
- Reserve fuel capacity, fuel injection:

  1.0 gal
Engine

add remove
- Engine:

  Milwaukee-Eight® VVT 121
- Bore:

  4.1 in
- Stroke:

  4.6 in
- Displacement:

  120.64 in³
- Compression ratio:

  11.4:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Air cleaner:

  Synthetic Felt, Washable
- Exhaust:

  2-1-2 dual exhaust
- Lubrication system:

  Pressurized, dry-sump
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  139.4 ft-lb
- Engine torque (RPM):

  3,000
- Horsepower:

  115 HP / 86 kW @ 4500 rpm
- Lean angle, right (deg.):

  32
- Lean angle, left (deg.):

  32
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  45 mpg (5.1 l/100 km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
- Final drive:

  Belt, 32/68 ratio
- Clutch:

  Mechanically actuated 10 plate, wet Assist & Slip
- Transmission:

  6-Speed Cruise Drive®
Chassis

add remove
- Front fork:

  47 mm Inverted 1x1 Front Forks
- Rear shocks:

  Dual adjustable emulsions suspension with remote preload adjustment on the left shock, and threaded preload on the right shock
- Wheels, front type:

  Combo Cast Laced
- Wheels, rear type:

  Combo Cast Laced
- Brakes, type:

  Dual floating rotors (front), fixed rotor (rear)
- Brakes, caliper type:

  32 mm, 4-piston fixed dual radially mounted front, and single axially mounted rear
- Frame:

  Mild steel; tubular frame, two-piece stamped and welded backbone; cast and forged junctions; twin down tubes; bolt-on rear frame with forged fender supports; MIG welded
- Swingarm:

  Mild steel, two piece drawn and welded section; forged junctions; MIG welded
Electric

add remove
- Lights (as per country regulation), Headlamp:

  LED
- Lights (as per country regulation), Tail/Stop:

  LED
- Lights, front signal lights:

  LED
- Lights, rear turn signals:

  LED
- Gauges:

  Digital gauges integrated within the display
- Battery:

  Sealed, maintenance-free, 12V, 28-amp/hour, 405 cca (per Battery Council International Rating)
- Charging:

  Three-phase, 58-amp system (754W max power @ 13V)
- Starting:

  1.6 kW electric with solenoid shift starter motor engagement
- Electric power outlet:

  15 Watt USB-C electric power accessory port in media storage box.
- GPS System:

  Yes, imbedded navigation system with real-time traffic and weather via Wi-Fi Hotspot
Infotainment

add remove
- Screen size:

  12.3 in (312 mm)
- Infotainment system:

  Skyline™ OS
- Type:

  Full Color TFT
- Watts per channel:

  125
- Speakers:

  4
- Speaker size:

  Two 6.5in fairing speakers, and two 5x7in saddlebag speakers
- Headset specifications (if equipped):

  Harley-Davidson Packtalk Edge wireless Bluetooth® headset
- AM:

  Standard
- FM:

  Standard
- Weather Band (WB):

  Supported
- Languages:

  Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice recognition: phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Standard (passenger headset sold separately), VOX is available for HD headsets
- Vehicle information screen:

  Standard
- USB:

  USB-C/MTP/iPod/iPhone, any device with proper adapters to the electric power outlet located in the inner fairing storage.
- Bluetooth:

  Phone/Media Player, Headset
