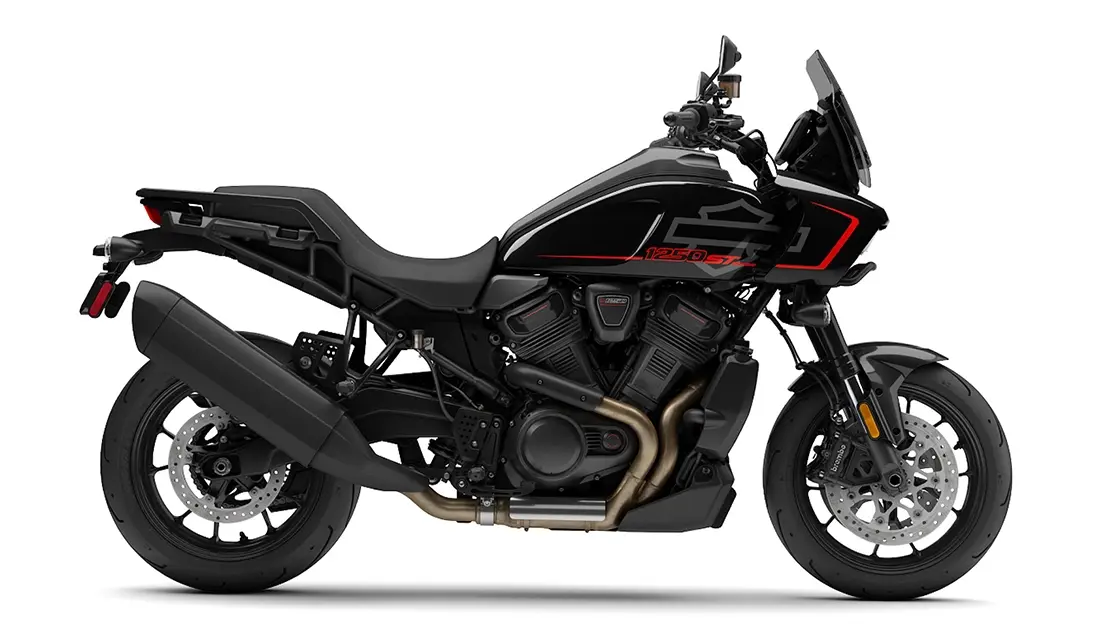

New 2026 Harley-Davidson® Pan America® 1250 ST FOR SALE NEAR Palm Bay, FL

This New Vivid Black Black Trim 2026 Harley-Davidson® Pan America® 1250 ST is for sale at Space Coast Harley-Davidson located in Palm Bay, FL. Contact Space Coast Harley-Davidson of Palm Bay, FL today to schedule a test-ride. If this isn't the exact Harley-Davidson® you're looking for don't hesitate to go back and revise your search. We're sure to have the perfect new motorcycle for you on our showroom in Palm Bay where we host one of the largest selections of new and used motorcycles. Visit Space Coast Harley-Davidson of Palm Bay, your FL Harley-Davidson® dealership. FL’s premier new & used motorcycle dealer, we'll help you ride home on a new Harley-Davidson® today!

Space Coast Harley-Davidson

Easy Financing. Call Today!

Map Directions: 1440 Sportsman Lane

Click To Call: 321-358-0362

The 2026 Pan America 1250 ST is for riders who know the best stories aren't told in a straight line. Featuring a 150 hp Revolution Max® motor, the new clutchless Quick Shifter, Adaptive Ride Height, all-new ride modes, and industry-standard 432 mm wheels for easy customisation, it’s a street-tuned, tech-forward machine that moves like you belong everywhere.

Specifications

Dimensions

add remove
- Length:

  88.2 in
- Ground clearance:

  6.7 in
- Rake (steering head):

  25
- Trail:

  3.7 in
- Wheelbase:

  62.2 in
- Tires, front specifications:

  120/70ZR17 58W
- Tires, rear specifications:

  180/55ZR17 73W
- Fuel Capacity:

  5.6 gal
- Oil capacity:

  4.75 qt.
- Weight, as shipped:

  511 lbs
- Weight, in running order:

  546 lb
Engine

add remove
- Engine:

  Revolution® Max 1250
- Bore:

  4.1 in
- Stroke:

  2.8 in
- Displacement:

  76.40 in³
- Compression ratio:

  13.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  91.5 ft-lb
- Engine torque (RPM):

  6750
- Horsepower:

  149 HP / 111 kW @ 8750 rpm
- Lean angle, right (deg.):

  37
- Lean angle, left (deg.):

  37
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  46 mpg (5.1 l/100 km)
Powertrain

add remove
- Primary drive:

  Gear, 49/89 ratio
- Gear ratios (overall) 1st:

  13.11
- Gear ratios (overall) 2nd:

  9.687
- Gear ratios (overall) 3rd:

  7.509
- Gear ratios (overall) 4th:

  6.057
- Gear ratios (overall) 5th:

  5.08
- Gear Ratios (overall) 6th:

  4.436
Chassis

add remove
- Front fork:

  47mm inverted fork with electronically adjustable preload and manually adjustable compression and rebound. Aluminum fork triple clamps
- Rear shocks:

  Linkage-mounted monoshock with automatic electronic preload control and manually adjustable compression & rebound damping
- Wheels, front type:

  Aluminum cast, satin black
- Wheels, rear type:

  Aluminum cast, satin black
- Brakes, type:

  Front: dual rotor, floating, hub mounted; Rear: solid uniform expansion rotor
- Brakes, caliper type:

  Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
Infotainment

add remove
- Type:

  Color TFT w/ Touch
- Headset specifications (if equipped):

  Bluetooth
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Headset function only
- Vehicle information screen:

  TPMS, Engine temp, Battery Voltage, Ambient Air Temp
- USB:

  Charging and Instrument update, USB-C, 5V, 3A
- Bluetooth:

  Phone/Media Supported
